Exocetus DIx 430 - Dix 470 - DH550 Bridge Deck Kit

Placeholder Picture

Bridge deck bulkhead components. (For clarity not all kit components are shown)


Sections are fabricated with a jig saw joints.

Far Eastern Marine Ply components, CNC profiled. BS1088.

Kit includes:
3 Bulkhead D Components
11 Bulkhead E components (13 DH550)
6 Bulkhead G components (8 DH550)
12 Bulkhead G skin doublers (14 DH550)
12 Bulkhead H components (18 DH550)

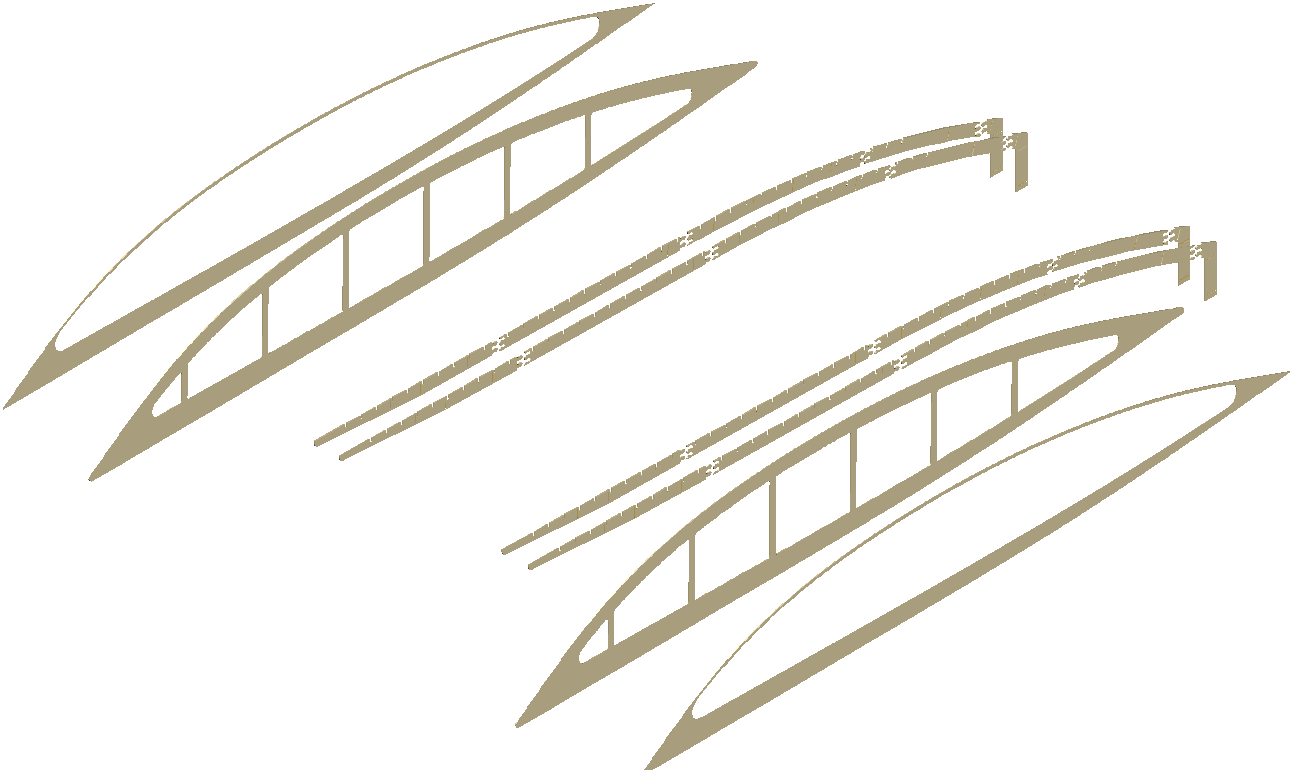

Bridge deck cabin components. (For clarity not all kit components are shown)

Placeholder Picture

Sections are fabricated with a jig saw joints. Beam profiles rebated for beam braces.

Far Eastern Marine Ply components, CNC profiled. BS1088.

Kit includes:
2 Bridge deck cabin side outer skin
2 Bridge deck cabin side Inner skin
4 Bridge deck roof beam profiles
2 Bridge deck roof beam top caps
38 Bridge deck roof beam braces

Placeholder Picture

Bridge deck cabin floor components. (Deck & Roof skin sections not shown on drawing)

Sections beam and skin sections are fabricated with a jig saw joints. Beam profiles rebated for beam braces.

Far Eastern Marine Ply components, CNC profiled. BS1088.

Kit includes:
6 Bridge Deck Floor Beam Profiles
3 Bridge Deck Floor Beam Caps
60 Bridge Deck Floor Beam Braces
Deck Skin Sections. 24 Dix 430. 28 Dix 470. 36 DH550
Deck Stringers Western Red Cedar. 230m Dix 430. 250m Dix 470. 305m DH550
4 Forward Deck Skin Sections
75m Forward Deck Stringers Western Red Cedar. 70m Dix 430. 75m Dix 470. 92m DH550
16 Saloon Roof Skin Sections (18 DH550)
16 Saloon Profiled Roof Lining Skin Sections (18 DH550)
Saloon Roof Stringers Western Red Cedar. 140m Dix 430. 157m Dix 470. 196m DH550
2 Forward Deck Radius Profiles (3 DH550)

Bridge Deck Kit DIX430. Far Eastern Ply BS1088 £7,290

Bridge Deck Kit DIX470. Far Eastern Ply BS1088 £8,185

Bridge Deck Kit DH550. Far Eastern Ply BS1088 £9,670

All prices eclude VAT

Placeholder Picture
Placeholder Picture

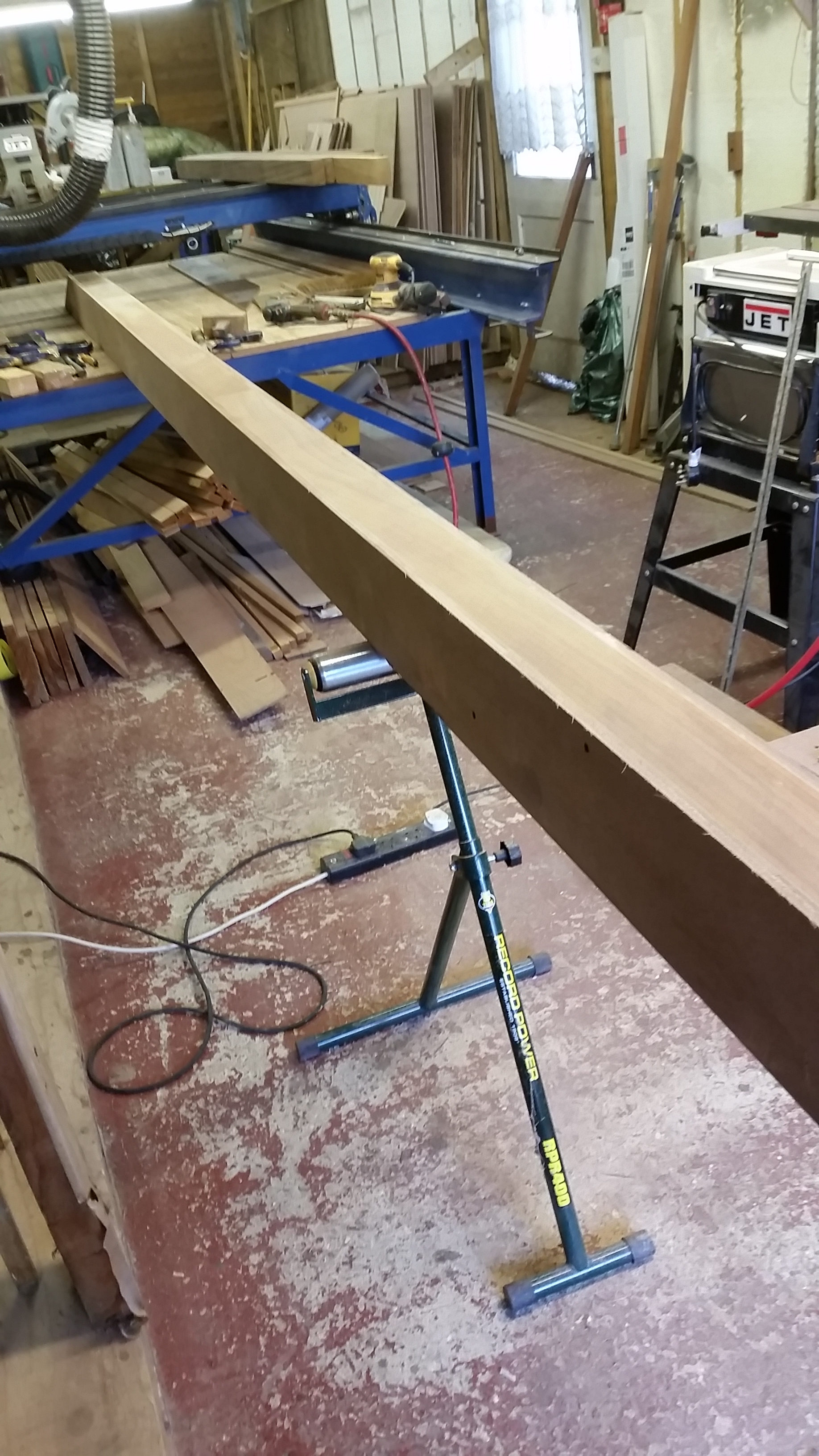

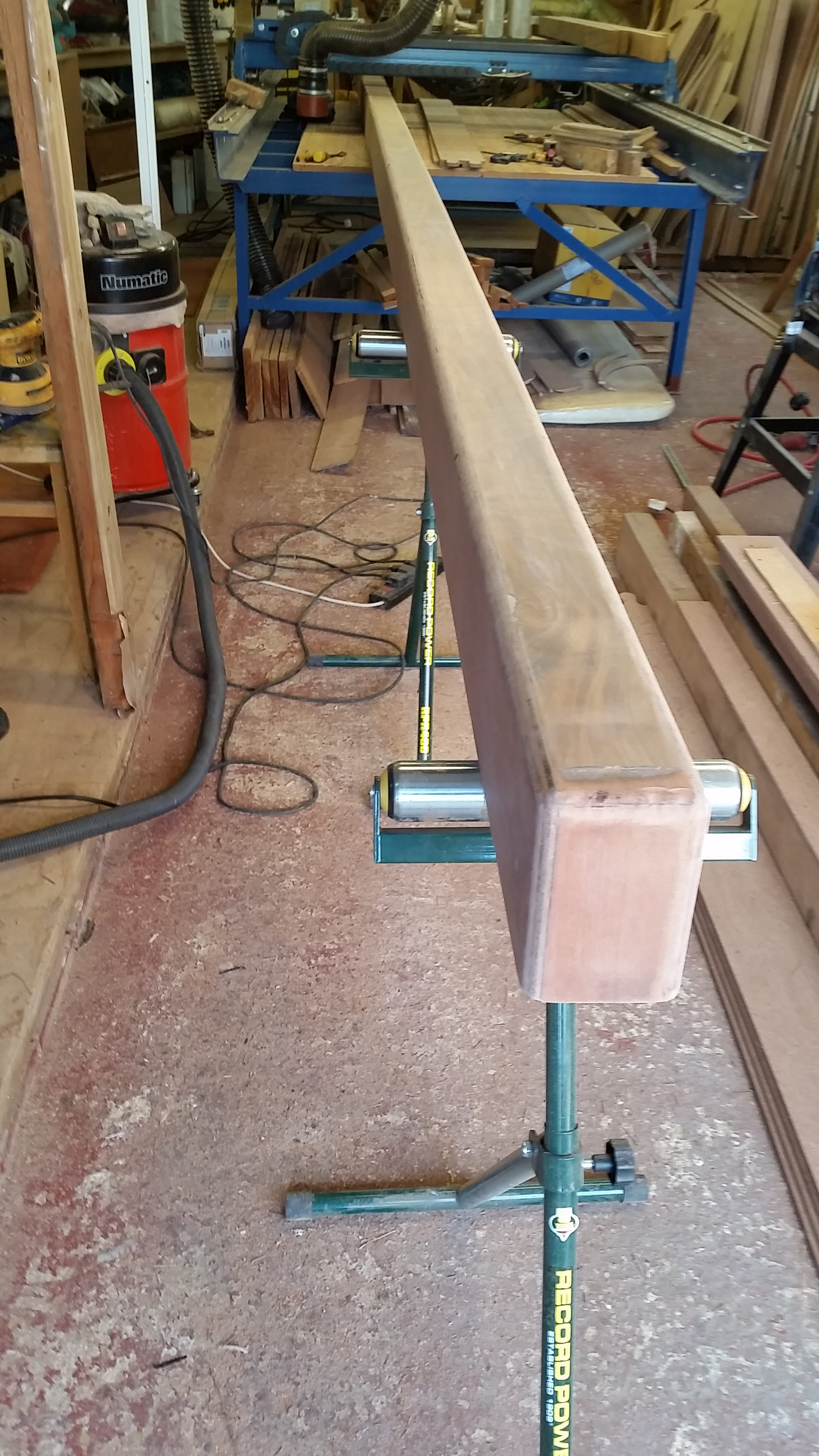

Construction of Bridge Deck Floor Beams

Placeholder Picture
Placeholder Picture

Construction of Bridge Deck Roof Beams

Placeholder Picture

Bridge Deck base under construction

Placeholder Picture

Bridge Deck base under construction

Placeholder Picture

Bridge Deck base under construction
