Exocetus Dix 430- Dix 470 - DH550 Hull Bulkhead Kit

Placeholder Picture

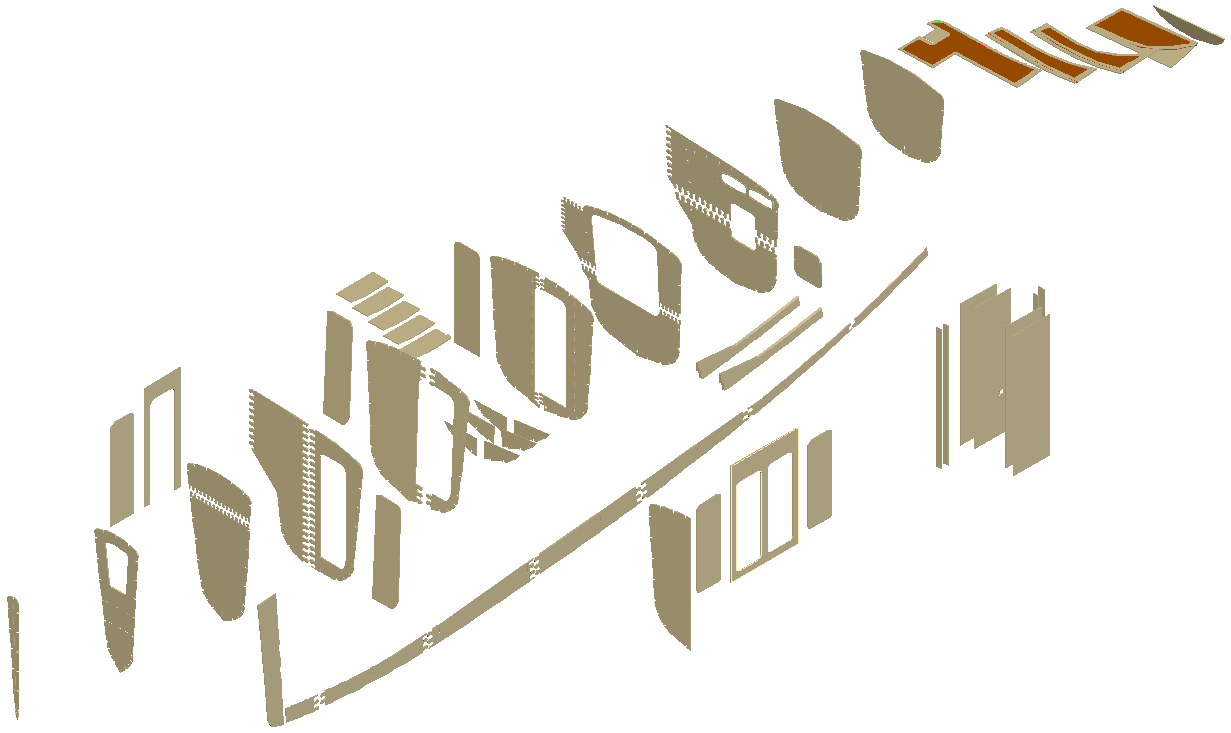

Bulkhead kit for construction of two Dix 430 / Dix 470 / DH550 Hulls. Standard two berth hull layout. Single hull components shown.

Far Eastern Marine Ply components, CNC profiled. BS1088.

Kit includes:
16 Bulkheads
8 Bulkhead Doors skins
2 Bulkhead Hatches
4 Temporary Bulkheads
2 Backbones
2 Backbone Flanges
2 Dagger box ply component sets
4 engine bearer ply component sets. (Vetus or Yanmar power).
8 Aft steps routed for 6mm inlay (not included)
2 transom sections
2 internal step sets
6 Step risers


Bulkhead Kit DIX430. Far Eastern Ply BS1088 £6,808

Bulkhead Kit DIX470. Far Eastern Ply BS1088 £8,020

Bulkhead Kit DH550. Far Eastern Ply BS1088 £8,920

All prices exclude VAT


4 Casing Sides (Not 430)
2 Fwd Cabin Wardrobe Partitions
12 Dagger Board case braces (Not 430)
2 Rudder Tube Flange sets
2 Rudder Tube upper brace sets
4 Forward Compartment Steps
2 Build Cradle sets
4 Support Cradles
Radius Chine Tangent profiles
Western Red Cedar Stringers. 560m Dix430 600m DIX470. 760m DH550.
Western Red Cedar Shear Clamp. 50m Dix430. 64m DIX470.  70m DH550.
32 Mahogany Cleats
2 GRP rudder tubes

Placeholder Picture

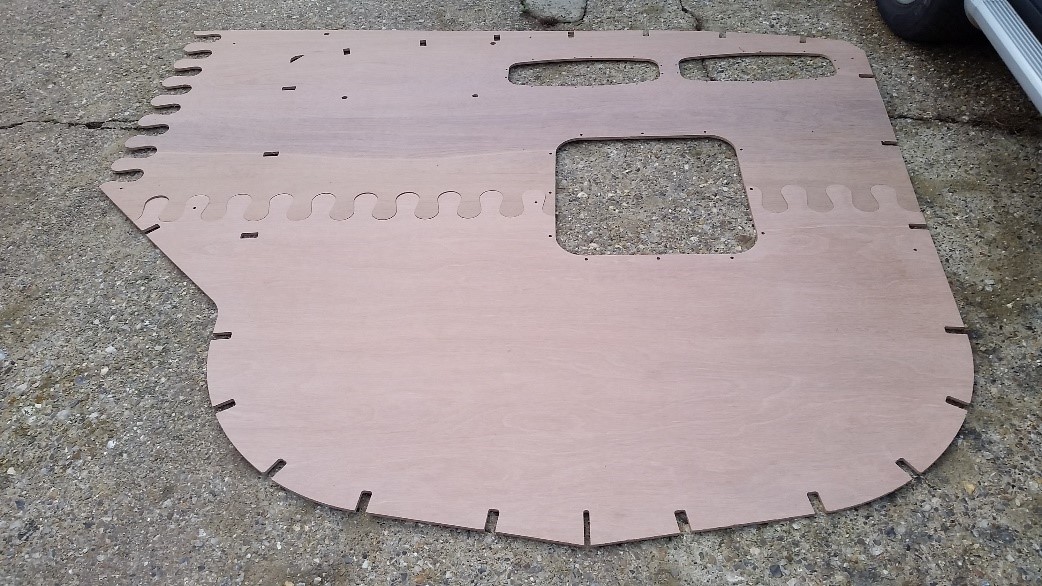

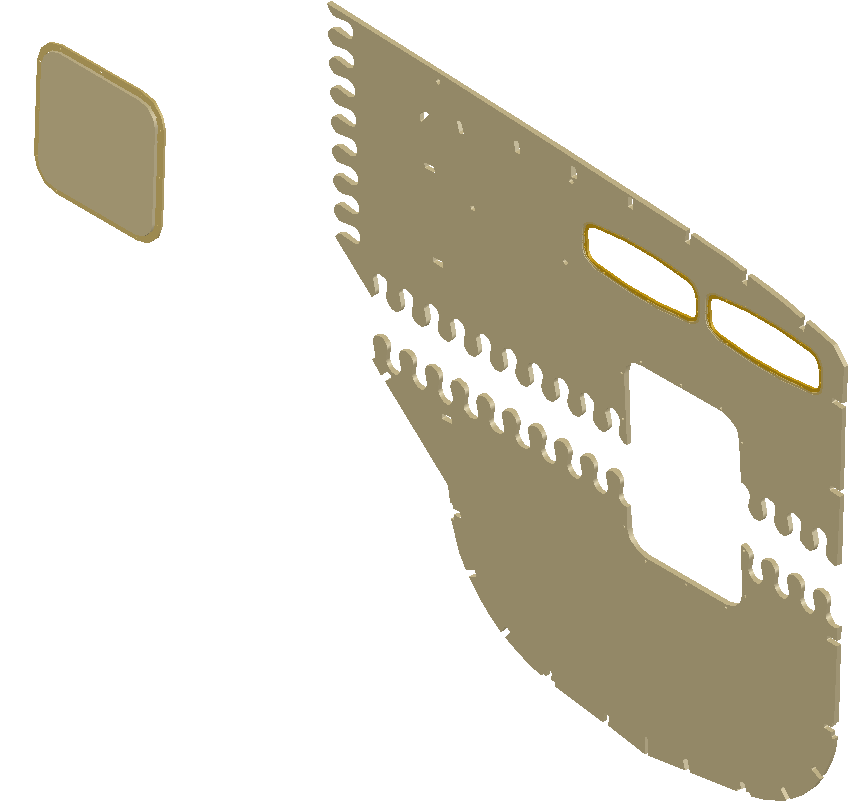

A typical bulkhead is supplied ready for fabrication with jigsaw joints, Port light openings and fixing holes, hatches and hatch rebates, stringer slots and penetrations.

Placeholder Picture

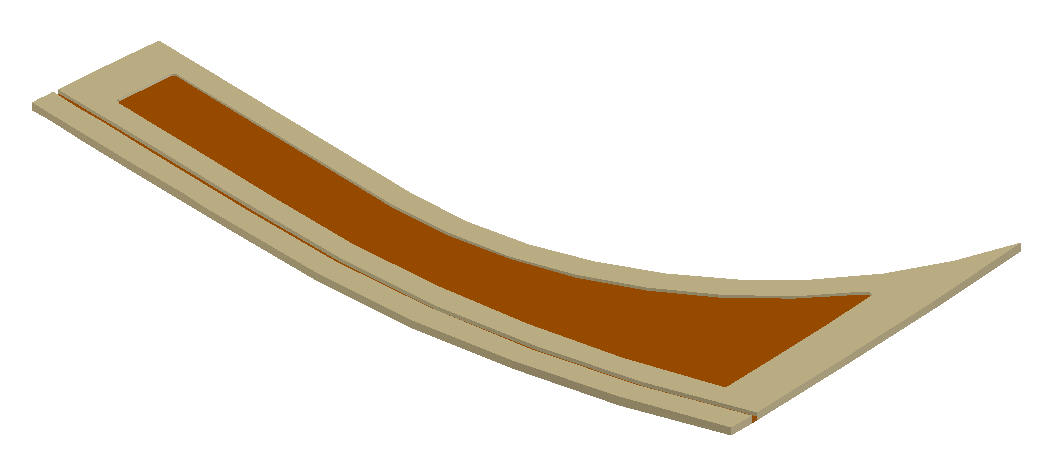

A typical hull step is supplied ready for fabrication with 6mm rebate for teak or cork inlay and step riser rebate.

Step inlay are not included with kits but can be purchased as an optional extra.

Optional Exocetus Dix 470 - DH550 Hull Bulkhead Kit Owners Cabin

Placeholder Picture

Alternative Owners Cabin layout for one or both hulls.

Far Eastern Marine Ply components, CNC profiled. BS1088.

Kit includes additional components:
1 Fwd Cabin Head partition
1 Centre cabin wardrobe set

Placeholder Picture

Plan showing owners cabin layout on Port side. Single cabin occupies all of one hull providing larger Head and shower compartment and additional storage. Owner’s cabin kit can be provided at no additional cost to standard kit.

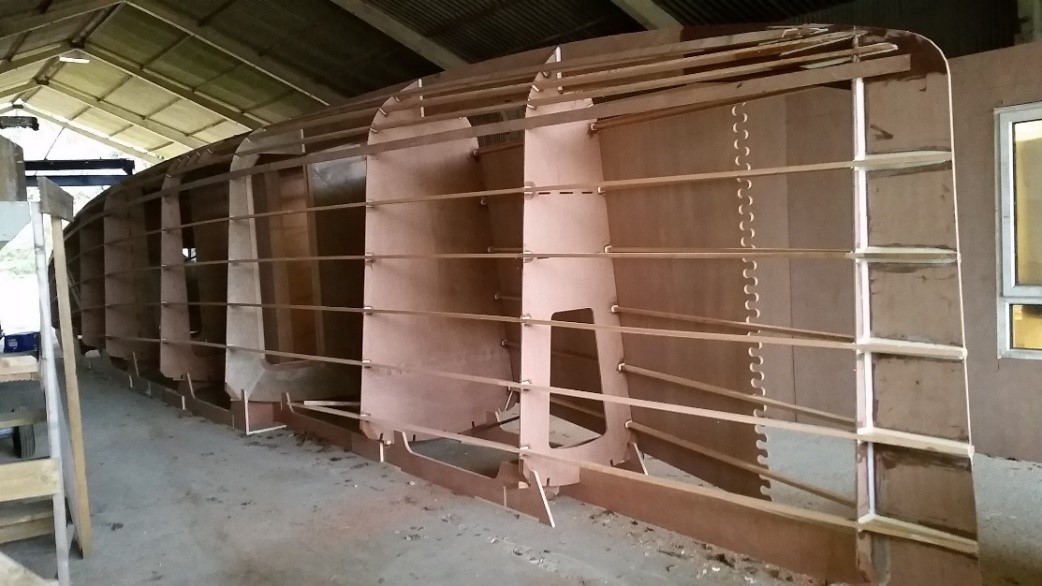

Photos demonstrating typical construction process using kit contents.

Placeholder Picture
Placeholder Picture

The build cradle provides support and accurate location of the Hull bulkheads for inverted hull construction phase.

Placeholder Picture

Bulkheads are supplied with a jigsaw joint.

Placeholder Picture

Western red stringers are supplied planed profiled and scarfed in 5m lengths. Bulkhead D and H require skinning by customer with layers of Biaxial Glass Fibre cloth. Resin and Biaxial cloth is not provided with this kit. Outer skin is part of the Hull Skin kit.
