Exo Dix 430 - 470 - DH550 Hull Internal Kit

Placeholder Picture

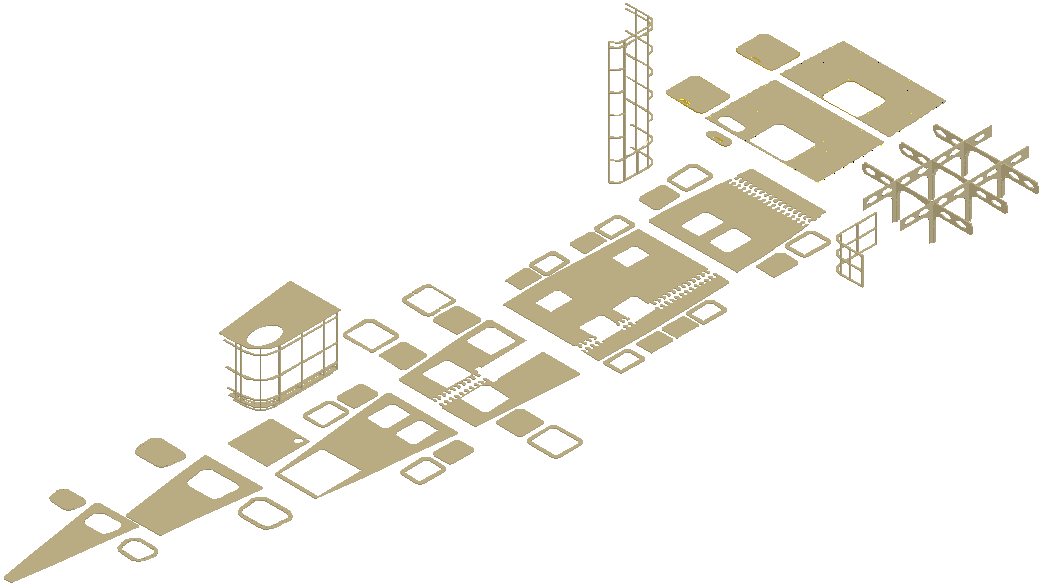

Hull Internal kit for fit out of two Dix 470/DH 550 Hulls. Single hull components shown. Head linings and radius profiles not shown.


Sections are fabricated with a jig saw joints, hatch openings and counter sunk fixing rebates. Frame work is designed for light weight and can be clad in flexi ply/veneered. (Flexi ply/veneer not included)

Jobert Okoume Marine Ply components, CNC profiled. BS1088.

Kit includes:
4 Forward Compartment Soles 2 Aft Cabin Soles
4 Forward Compartment Sole Hatches 2 Aft Cabin Sole Hatches
4 Forward Compartment Sole Hatch Flanges 2 Aft Cabin Sole Hatch Flanges
4 Forward Bunk Bases 2 Aft Cabin Sole Hatches
8 Forward Bunk Hatches 2 Aft Cabin Seat Frames
2 Forward Bunk Support Frames 2 Aft Cabin Wardrobe Frames
4 Forward Cabin Soles 4 Aft Bunk Bases
8 Forward Cabin Sole Hatches 6 Aft Bunk Base Hatches
8 Forward Cabin Sole Hatch Flanges 2 Aft Bunk Support Frames
2 Head Soles
2 Head Sole Hatches
2 Head Sole Hatch Flanges
2 Shower Tray Support Bases
2 Head Partition Frames
4 Head Partition Profiled Inner Skin 2420 x 1220
2 Head Vanity Basin Frames
2 Head Vanity Basin Tops
Sheets Profiled Head Lining 2420 x 1220. 20 Dix 430. 24 Dix 470. 26 DH550
Cold Moulded Ply Internal Radius Chine Profile 30m² Dix 430. 35m² Dix 470. 41m² DH550
Internal Hull Skin 6mm Marine Ply. 71m² Dix 430. 101m² Dix 470. 113m² DH550. New kit feature with option for veneer face.

Hull Internal Kit Dix 430. Jobert Okoume Marine Ply BS1088 £4,693

Hull Internal Kit Dix 470. Jobert Okoume Marine Ply BS1088 £7,506

Hull Internal Kit DH 550. Jobert Okoume Marine Ply BS1088 £8,515

All prices exclude VAT

Placeholder Picture

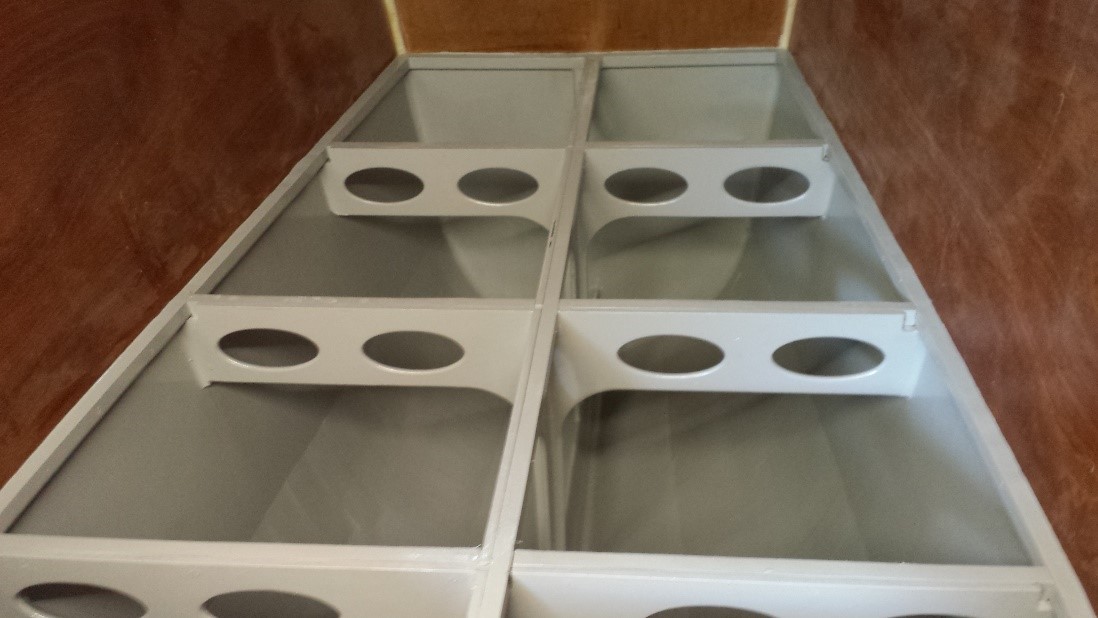

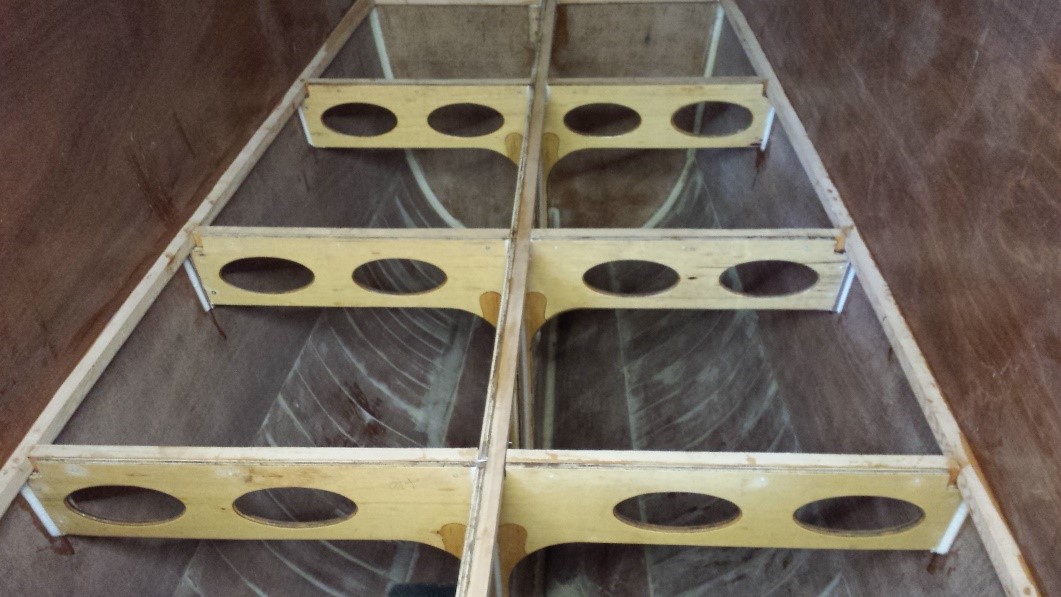

Forward cabin bunk support under construction.

Placeholder Picture

Forward cabin bunk support completed.

Placeholder Picture

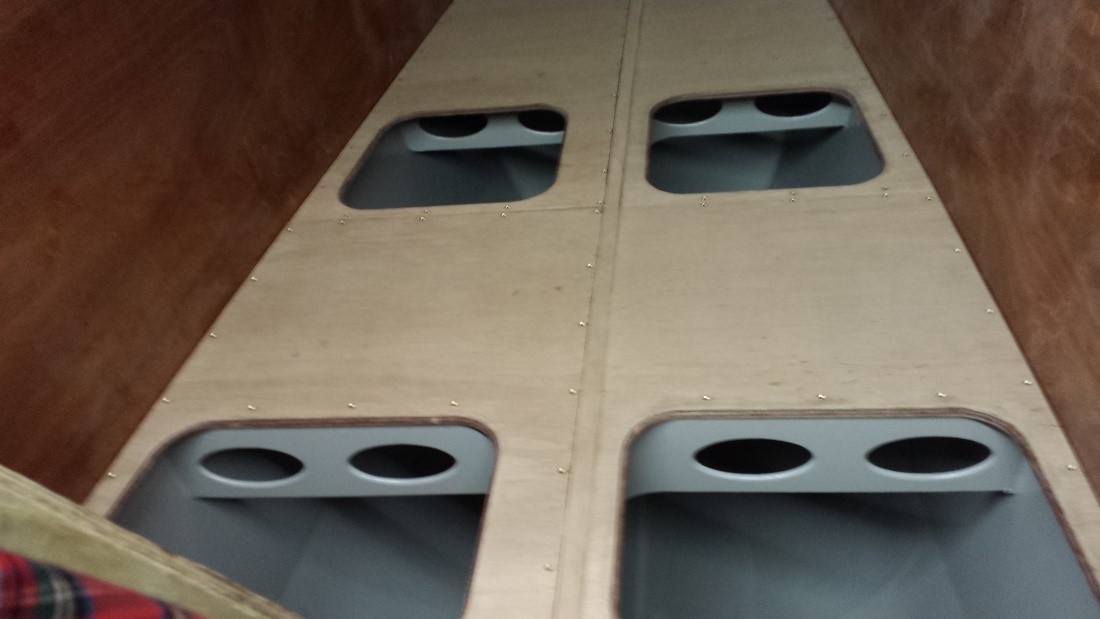

Forward cabin bunk base in position.

Placeholder Picture

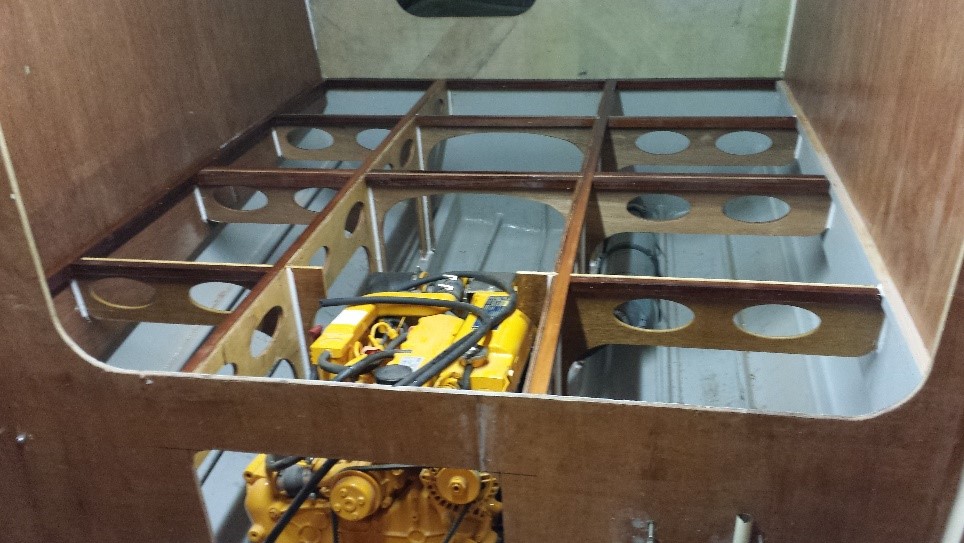

Aft Cabin Bunk Support Frame. Frame section above Vetus engine is removable to provide access to engine.

Placeholder Picture

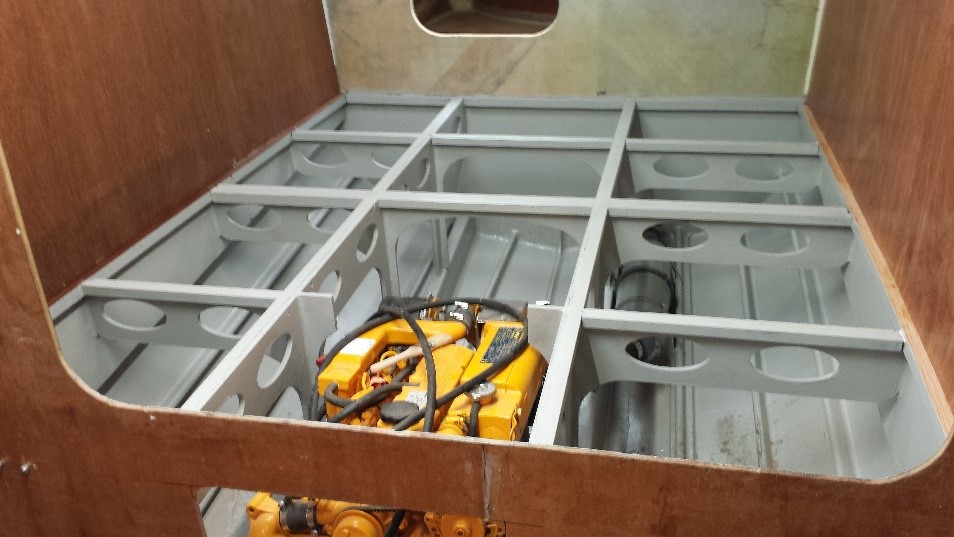

Engine compartment frame finished with bilge painting coating.

Placeholder Picture

Bunk base with engine access hatches. Small hatch on right is for access to water strainer.
Hatch on rear bulkhead provides access to steering gear and gooseneck

Placeholder Picture

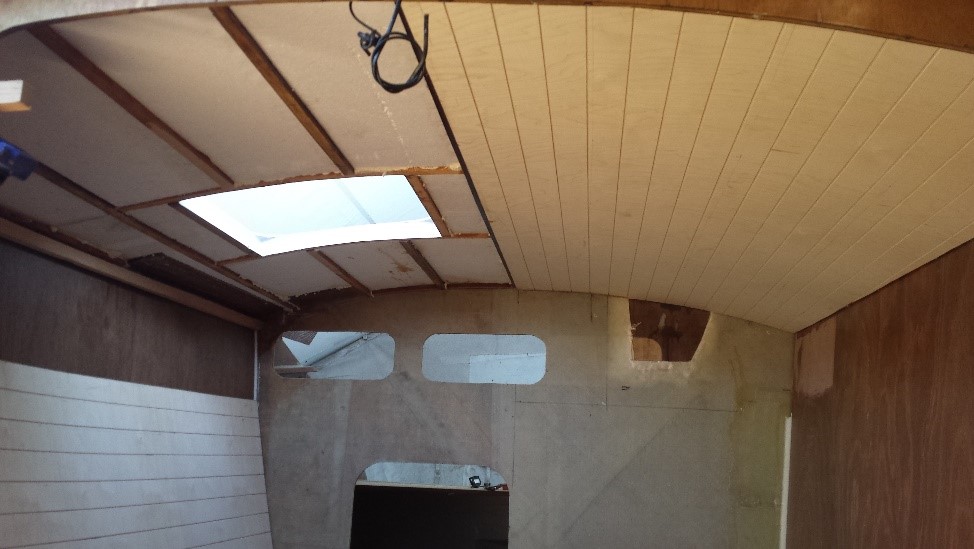

Profile head lining.

Placeholder Picture

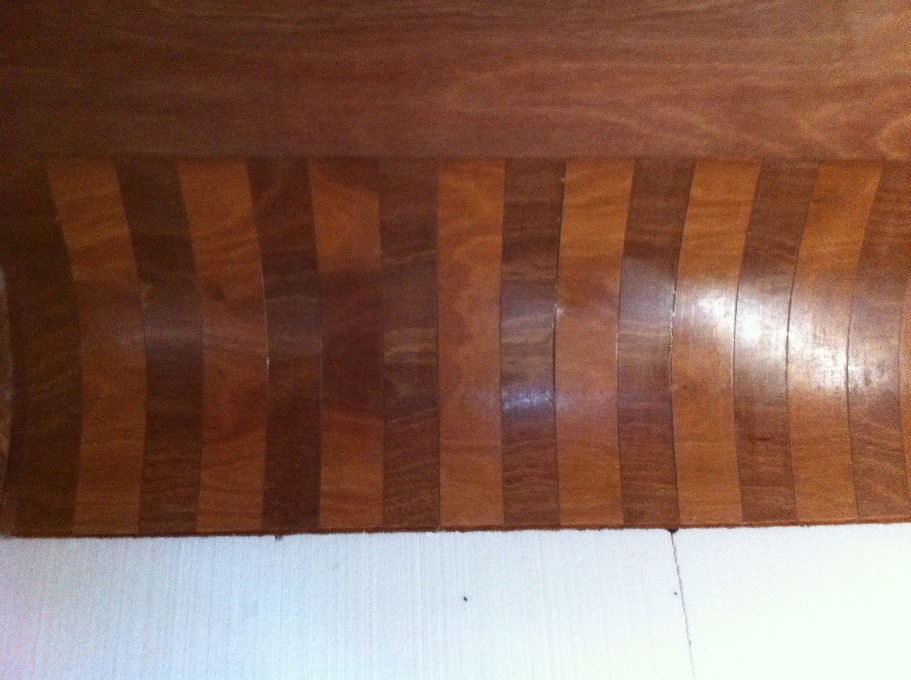

Cold Moulded Ply Radius Chine Profiles used to line inner hull radius chine.

Placeholder Picture

Cold Moulded Ply Radius Chine Profiles used to line inner hull radius chine.

Placeholder Picture

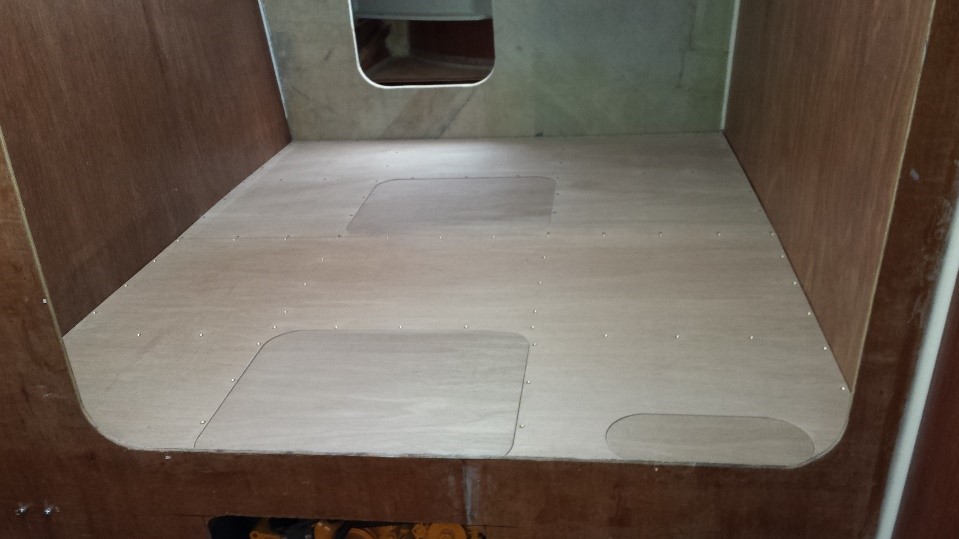

Forward cabin sole with hatches.

Placeholder Picture

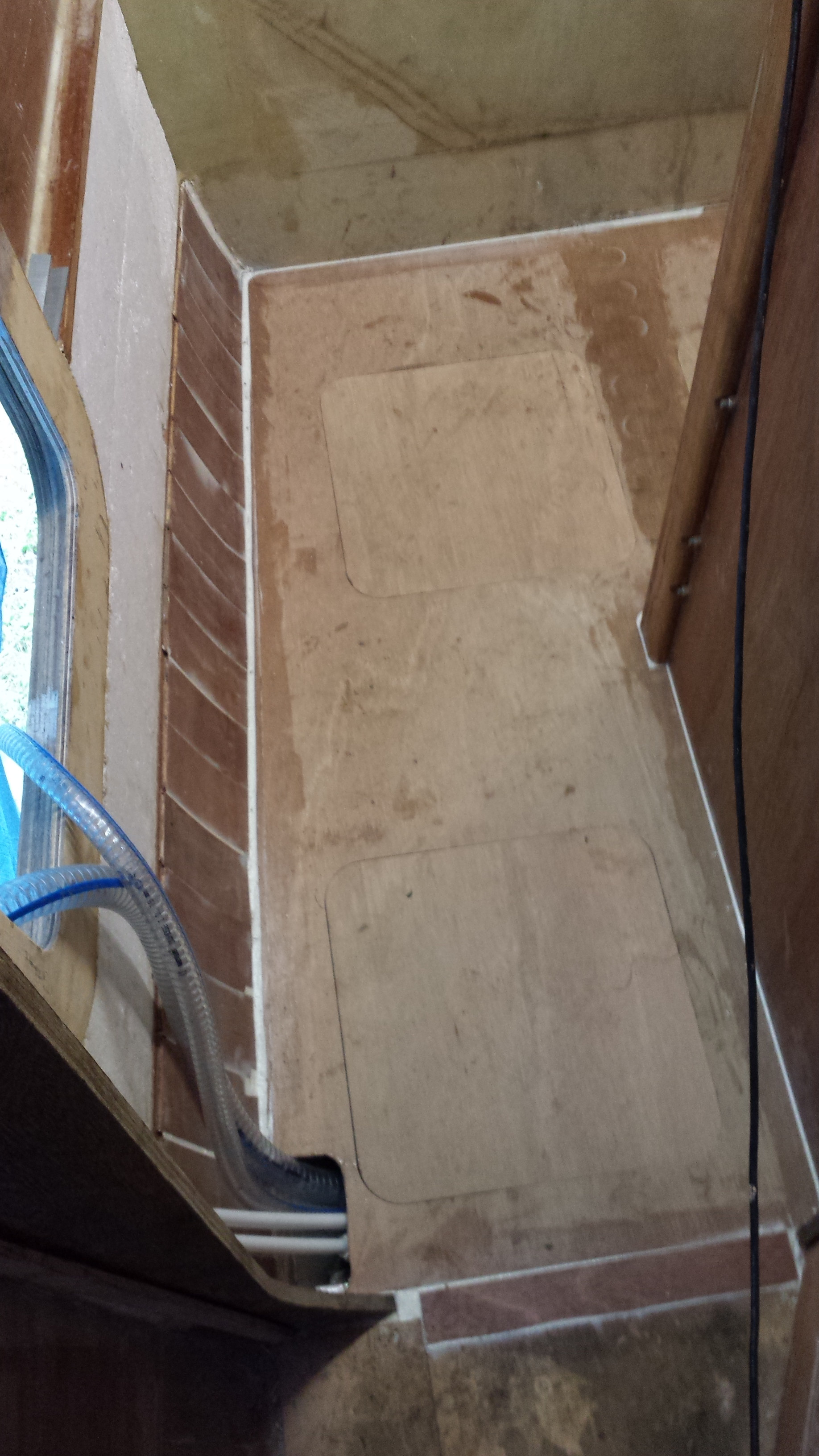

Forward compartment sole bonded in place.

Placeholder Picture

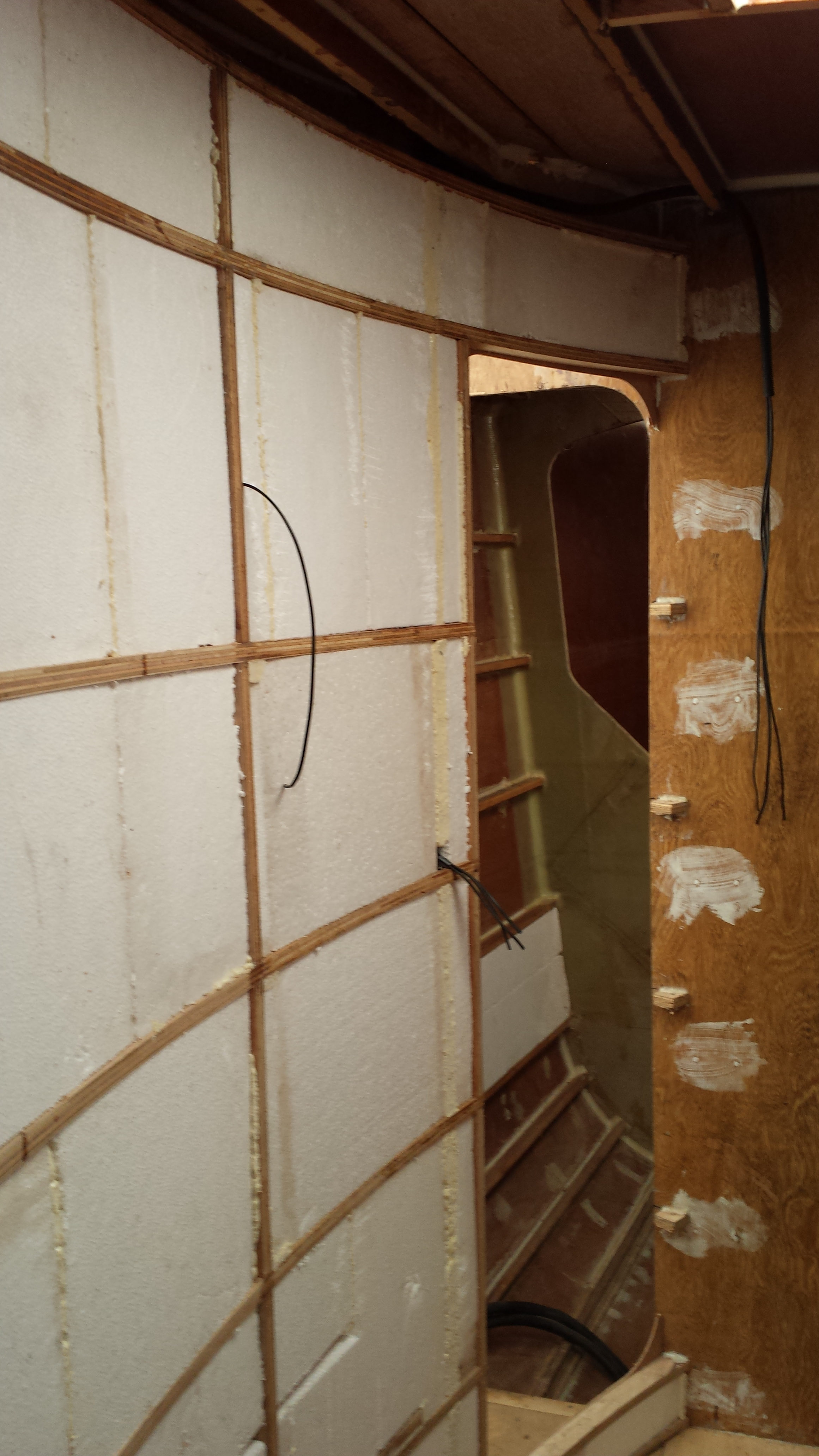

Curved Head partition in place.

Optional Exocetus Dix 470 DH550 Internal Hull Kit Owners Cabin

Placeholder Picture

Alternative Owners Cabin layout for one or both hulls.

Placeholder Picture

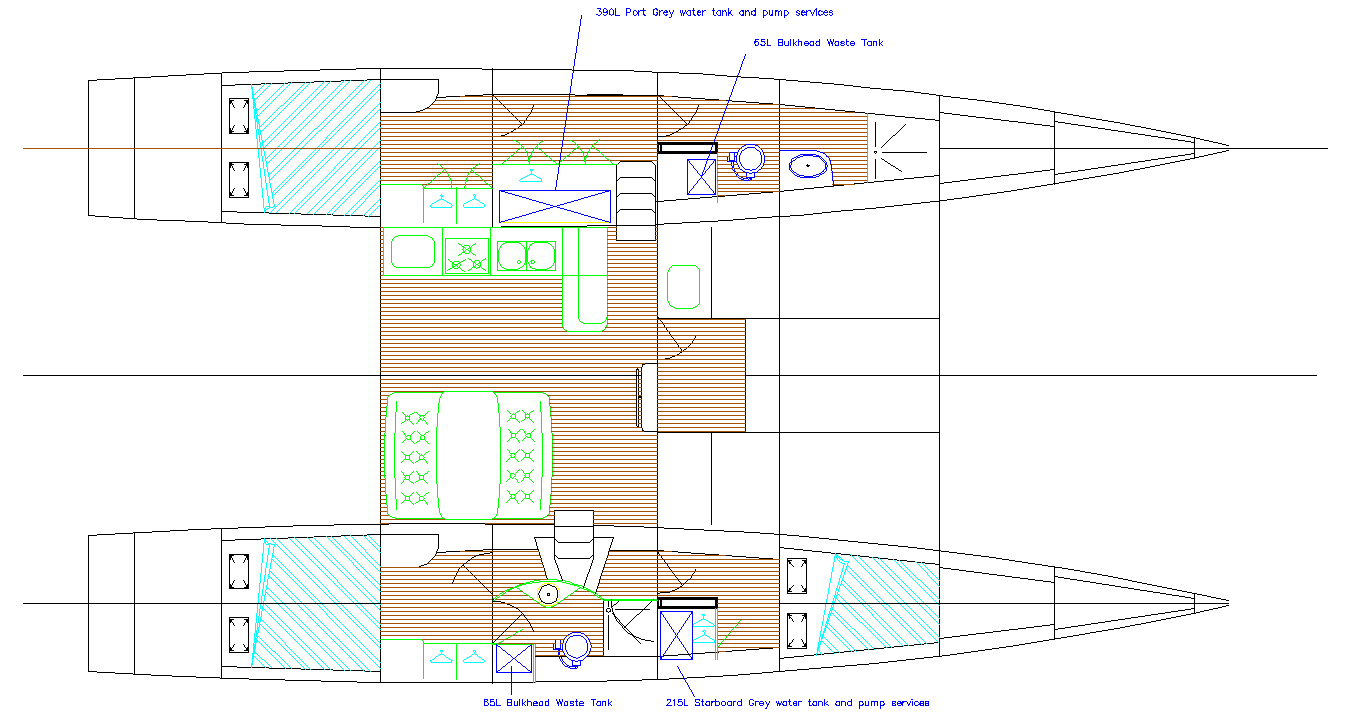

Plan showing owners cabin layout on Port side. Single cabin occupies all of one hull providing larger Head and shower compartment and additional storage. Owner’s cabin kit can be provided at no additional cost to standard kit.
