Exocetus Dix 430 - Dix 470 - DH550 Hull Skin Kit

Placeholder Picture

Hull Skin kit for construction of two Dix 430 - Dix 470 - DH 550 Hulls. Single hull components shown.


Skin sections are profiled to precise hull shape with minimal machining required for installation. Sections are fabricated with a jig saw joint and radius chine layer rebates.
Far Eastern Marine Ply components, CNC profiled. BS1088.

Kit includes:
Hull Side Skin Sections. 50 Dix 430. 54 Dix 470. 60 DH 550
2 Chain Plate Skin Sections skimmed ready for Biaxial/Carbon fibre application.
Hull Bottom Skin Sections. 22 Dix 430. 24 Dix 470. 28 DH 550
Hull Deck Skin Sections 22 Dix 430. 24 Dix 470. 30 DH 550
Cold Moulded Ply Radius Chine Profiles 62m² Dix 430.  88m² Dix 470. 96m² DH 550.


Hull Skin Kit DIX 430. Far Eastern Ply BS1088 £7,050

Hull Skin Kit DIX 470. Far Eastern Ply BS1088 £8,960

Hull Skin Kit DH 550. Far Eastern Ply BS1088 £9,593

All Prices Excluding VAT

Placeholder Picture

Cold Moulded Ply Radius Chine Profiles

Placeholder Picture

Cold Moulded Ply Radius Chine Profiles are cut to size and two over lapping layers bonded to Hull structure.

Placeholder Picture

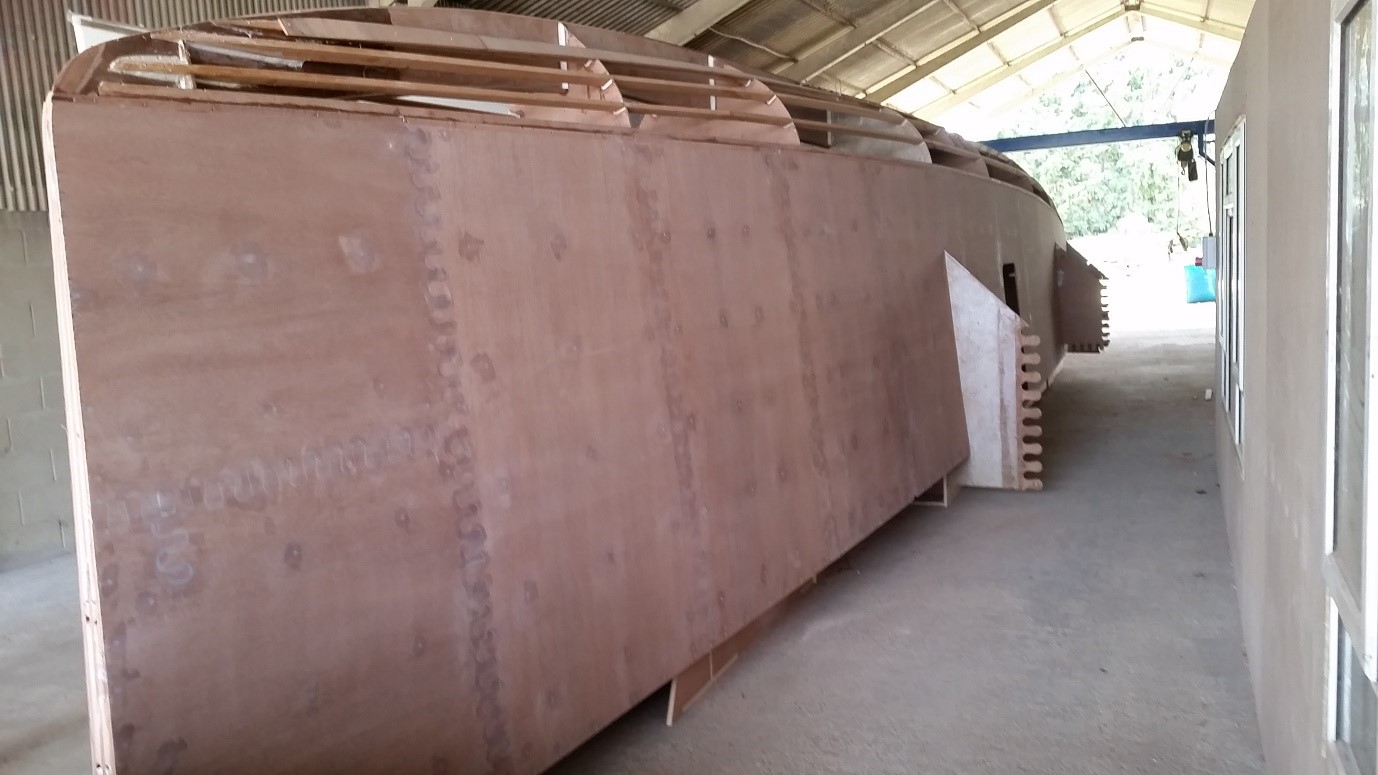

Side Skin sections bonded to hull.

Placeholder Picture

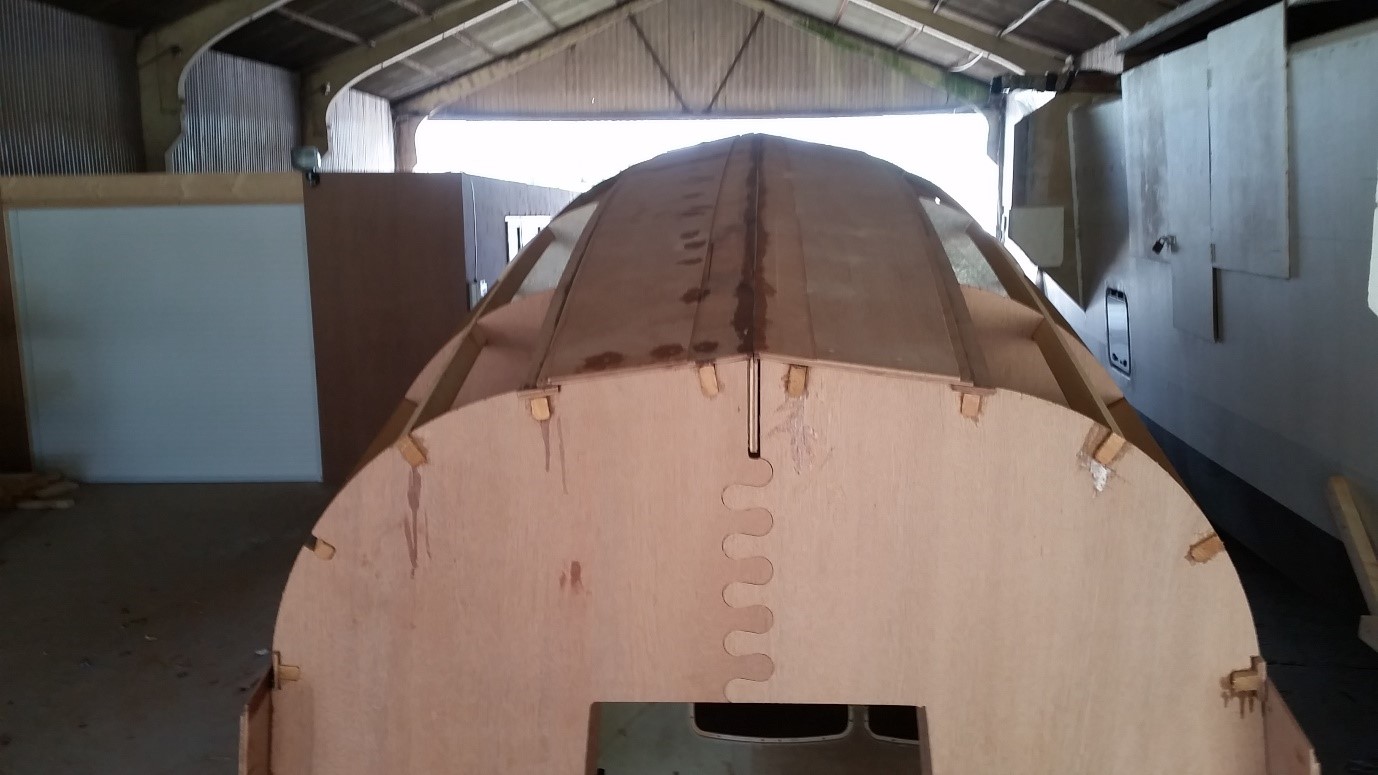

Bottom Skin sections bonded to hull. Skin sections are rebated for centre line glass fibre reinforcement.

Placeholder Picture

Final sanding of hull produces an excellent finish with minimal filling/fairing required before epoxy coating.

Approximately 420 Man Hours for Phase 2, Hull ready for turn.

Placeholder Picture

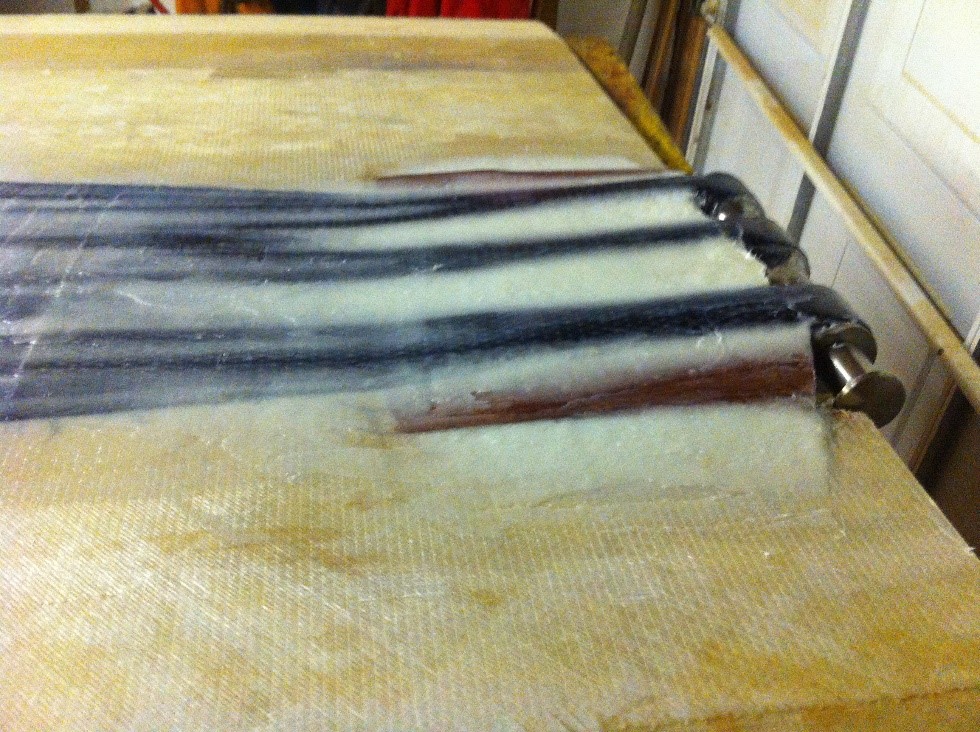

Chain plate skin section construction requires Biaxial Glass Fibre cloth and carbon fibre tape application by customer.

Resin, Biaxial carbon or SS shroud components are not provided with this kit.

Bulkheads are supplied with a jigsaw joint.

Placeholder Picture

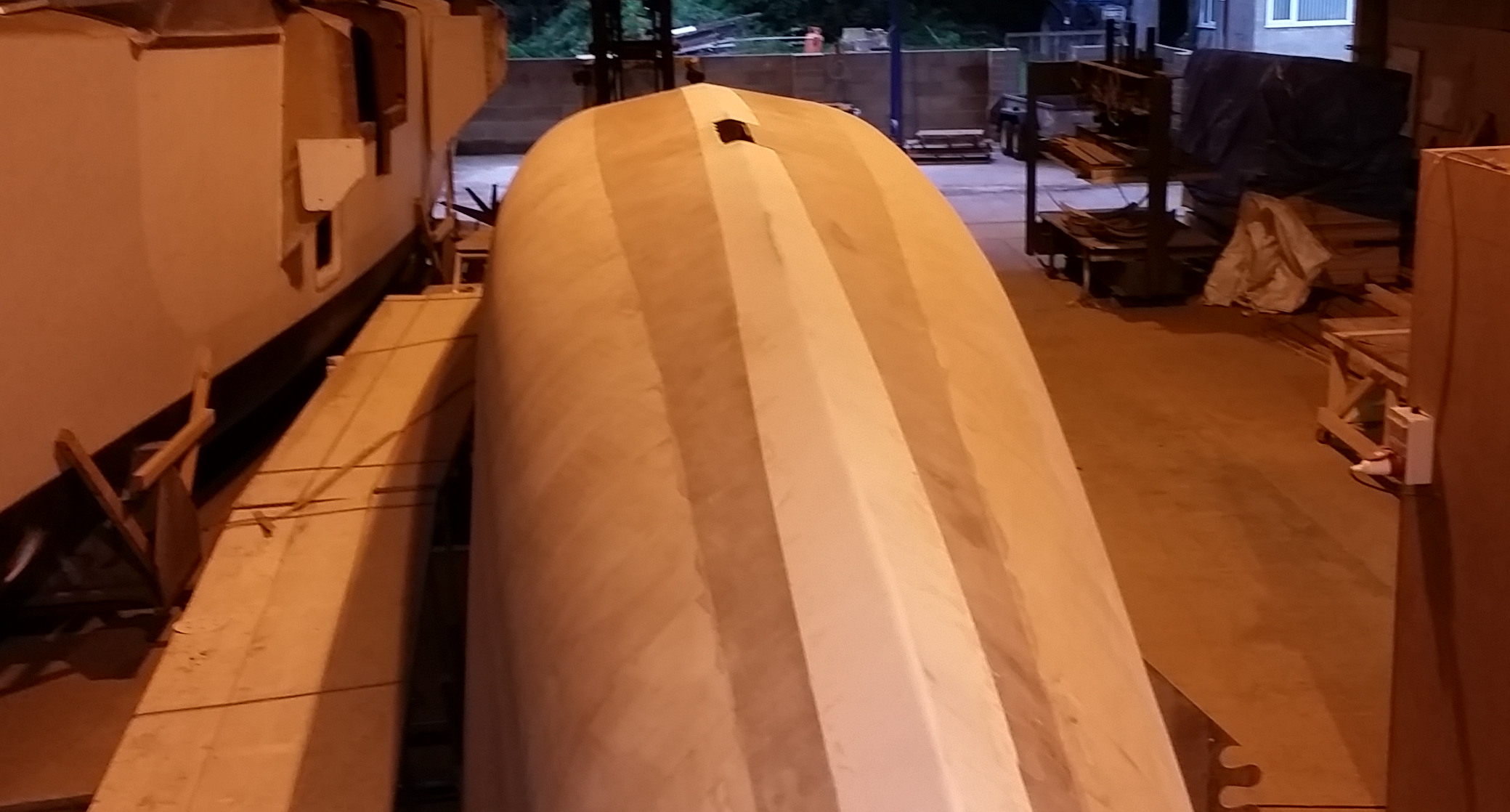

 Centre line glass fibre reinforcement installed and filled ready for epoxy coating.
